If you own a RAM truck with a 6.7L Cummins engine, you’re driving one of the most capable diesel powertrains on the road. However, like any hardworking diesel engine, this Cummins model can experience specific issues that require attention from experienced diesel specialists. At Branch Automotive in Littleton, CO, we’ve diagnosed and repaired countless Cummins diesel problems, and we’re here to help you understand the most common failures, their symptoms, and how to prevent them. Whether you’re dealing with turbo failure, transmission concerns, lifter issues, or grid heater bolt failures, our team has the expertise and manufacturer-level diagnostic tools to get your truck back on the road quickly.
Turbocharger Failure in Littleton's 6.7 Cummins Trucks: The Most Misdiagnosed Problem
What Happens When Your Turbo Fails
Here’s what most people don’t understand about turbocharger failure on the 6.7 Cummins: it looks like actuator failure, but 99% of the time, it’s the turbo that is mechanically bound up. The turbocharger vanes bind up inside the housing, overworking the actuator and burning up the electronic motor. Once that happens, the boost becomes uncontrollable.
Common symptoms you’ll notice:
- Check engine light illumination
- Loss of power during acceleration
- Black or gray smoke from the exhaust
- Unusual whistling or whining sounds
- Rough idle or hesitation
But here’s the tricky part: performance won’t always be affected. It depends on where the turbocharger vanes bind up. Sometimes you’ll have full power with a check engine light, and other times you’ll experience significant power loss without any warning lights at first.
Why the Turbo Binds Up
The variable geometry turbocharger uses movable vanes to control boost pressure across different engine speeds. Over time, several factors cause these vanes to stick:
- Carbon buildup from combustion byproducts
- Contaminated oil reaching the turbo bearings
- Normal wear from high temperatures and pressures
- Lack of proper maintenance intervals
Once the vanes bind, the electronic actuator can’t move them properly, leading to the cascade of failures we described above.
68RFE Transmission Failures in Littleton: Prevention is Everything
Many people neglect their transmission fluid, and maintenance is key here. But there are also other things that can cause failures with the 68RFE transmission model.
What Kills Your Transmission
- Overloading and asking too much of the 68RFE: Your transmission is designed for specific load limits. Exceeding your truck’s towing or payload capacity puts enormous strain on internal components.
- Using tuners to add horsepower: This will always shorten the lifespan of this transmission. The 68RFE is engineered for the factory power output, and adding horsepower through modifications accelerates wear.
- Abuse: Aggressive driving, rapid acceleration, and hard shifting all contribute to premature failure.
- Neglected fluid changes: Old transmission fluid loses its ability to lubricate and cool components, leading to increased friction and heat.
The Maintenance Schedule That Saves Money
- Schedule transmission fluid flush and filter changes at recommended intervals
- Increase service frequency if you tow heavy loads regularly
- Always use manufacturer-specified transmission fluid
- Have transmission inspected during your 5,000-mile oil service
- Address any shifting concerns immediately to prevent costly transmission repairs
At Branch Automotive, we emphasize preventative maintenance over reactive repairs. Regular transmission service costs far less than a complete rebuild, and waiting to take care of maintenance is only moving the concern from a maintenance item to a repair item, meaning it’ll take longer to fix and cost more money.
Experiencing power loss or check engine lights in your Cummins diesel? Call Branch Automotive at (303) 771-2224 or visit us at 6030 E County Line Road, Littleton, CO 80126 for expert diagnosis using manufacturer-level scan tools.
Hydraulically Actuated Lifter Failure: The Emerging Issue
Lifter failure is becoming a big deal to talk about on these engines. The 6.7 Cummins uses Hydraulically Actuated Lifters (HLA) that can collapse and produce odd drivability issues. When this happens, it usually wipes out the camshaft and becomes a large repair.
The Best Prevention Strategy
- Change your oil: This is the single most important thing you can do to prevent lifter failure.
- Make sure you’re using the right oil: In 2019, RAM changed specs to require the use of synthetic oil in these engines. Using conventional oil in newer models can lead to premature lifter failure.
- Our recommended service interval: 5,000 miles between oil changes to protect your engine and components.
The Lifter Conversion Option
There is a conversion to remove the HLA lifters and convert to flat tappet style lifters. However, you do still have to use the 5w40 synthetic oil, and we recommend 5,000-mile intervals between changes. This conversion can provide peace of mind if you’ve already experienced lifter problems or want to eliminate the risk.
Grid Heater Bolt Failure: The $30,000 Problem

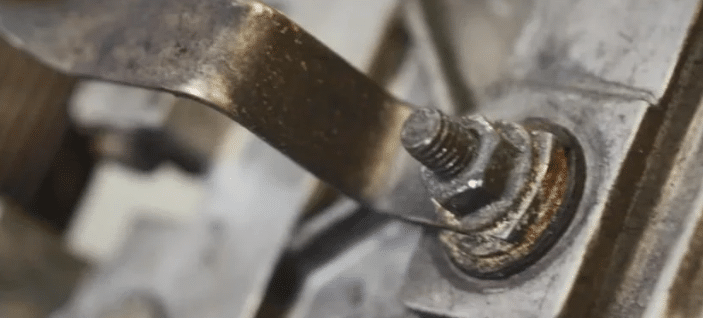

There’s a small bolt on your 6.7 Cummins that provides power to the intake air heater (also called the grid heater). This bolt can wear over time, and if it’s not caught early, the consequences can be devastating for your engine.
What Makes This So Dangerous
Here’s what happens when this bolt fails: it can break in half, and the bottom portion isn’t retained in any way. Once it breaks loose, that piece falls into the intake and gets pulled directly into the engine. From there, it damages pistons, cylinder heads, and other engine internals. In severe cases, you’re looking at a complete engine replacement—all from a single failed bolt.
The repair bill? Upwards of $30,000 if the bolt breaks and causes internal engine damage.
The Prevention Solution
At Branch Automotive, we have a proven solution to eliminate this failure possibility completely. We convert from the factory grid-style heater to a pin-style intake air heater. This conversion removes the vulnerable bolt from the equation entirely, preventing this expensive failure from ever happening to your truck.
If you’re concerned about grid heater bolt failure or want to prevent this costly problem before it happens, our team can inspect your system and discuss the conversion option. Catching this issue early or eliminating it with a conversion can save you tens of thousands of dollars.
The HVAC Problem Nobody Talks About
A clogged A/C evaporator or heater core in the dash produces low air velocity from the vents, weak heat or A/C, or a combination of both. This issue sneaks up on truck owners because it happens gradually over time.
The Simple Prevention Method
Change your cabin air filter at 15,000-mile intervals. This keeps all the contaminants and debris out of the HVAC system and protects your expensive evaporator and heater core from premature failure. If your truck is equipped with a cabin air filter, this is one of the easiest and most cost-effective maintenance tasks you can perform.
Differential Maintenance: The Silent Wear You Can't See
Differential maintenance gets overlooked by a lot of people, especially when going to chain stores for cheap oil changes. That’s why we do our same inspection on every truck that comes in for service work, so that our clients know the status of their fluids and vehicle.
Understanding the Load on Your Differential
Think about this: these gearboxes are taking all 1,000 ft-lbs of torque and transferring it to the wheels. So if the truck is moving, it is working the differential. When the gear oil gets neglected, it can’t lubricate the differentials as it should, and internal wear happens prematurely.
Why This Matters for Your Wallet
Maintaining your differential is certainly a good place to spend preventative maintenance dollars. A differential service is relatively inexpensive compared to a complete rebuild or replacement. The key is catching wear before it becomes catastrophic failure.
Recommended service intervals:
- Check the differential fluid level annually
- Change differential fluid every 30,000-50,000 miles
- Service more frequently if you tow heavy loads regularly
- Inspect for leaks during every oil change
Why Branch Automotive for Your 6.7 Cummins Engine
When your Cummins diesel needs expert care, you need more than a general repair shop. You need true diesel specialists who understand these complex engines inside and out.
Littleton's Most Advanced Diesel Diagnostic Tools
- Manufacturer scan tools and software: We use the same diagnostic equipment that RAM dealerships use for Dodge, GM, and Ford diesel trucks.
- Chassis Dynamometer: This allows us to simulate real-world driving conditions for difficult-to-diagnose problems. If someone is having trouble towing up the mountain at a 6% grade, we can replicate that exact condition to identify the issue.
- Factory-trained technicians: Our team includes multiple technicians with Ford and GM factory training in diesel repair, giving us insights that most independent shops simply don’t have.
Our Team's Credentials
- ASE Master Technicians on staff
- ASE World Class Technician (one of only 1,100 in the country)
- 23 ASE certifications held by our owner
- All team members have some level of ASE certification
- Continuous training on the latest diesel technology
The Branch Automotive Difference
- Faster turnaround times: While dealerships often have 4-6 week wait times for diesel repairs, we can typically get your truck back to you much quicker without compromising quality.
- Digital vehicle inspections: We send photos and detailed reports directly to your phone so you can see exactly what your truck needs.
- Text-enabled service: Communicate with our team via text for convenient updates and scheduling.
- Nationwide warranty: Most repairs come with warranty coverage that protects you across the country.
- Transparent process: If you don’t understand what’s happening with your truck, we haven’t done our job. We take time to educate every customer.
We serve Littleton, Highlands Ranch, Centennial, Cherry Hills, Lone Tree, Parker, Castle Rock, Greenwood Village, Lakewood, and throughout Douglas County, Arapahoe County, and Elbert County.
Our Philosophy on Maintenance vs. Repair
Neglecting maintenance is not a winning game in diesel trucks. The trucks of this generation are constantly making sure that they’re running to specification and not polluting. There are preventative maintenance items for lots of systems that will help to maximize performance and reliability.
At Branch Automotive, our philosophy centers on three core principles:
- Better Value: Better communication, better practices, better people, better availability, and better turnaround times by being specialized.
- Better Industry: Refusing to be mediocre, with absolute dedication to repairing as it should be done, not cutting corners, and taking pride in our work all through the shop.
- Better Life: Better life for our customers and staff by offering good service that keeps you in your vehicle doing the things you want to do.
FAQs About 6.7 Cummins Engine Problems
What are the common 6.7 Cummins problems?
The most common 6.7 Cummins problems include turbocharger failure (where the turbo vanes bind up), transmission failures due to neglected fluid maintenance, hydraulically actuated lifter failures, HVAC system issues from clogged cabin filters, and differential wear from neglected gear oil.
Why is my Cummins engine losing power?
Your Cummins engine may be losing power due to turbocharger vanes binding up, failed lifters affecting valve operation, boost control problems from a failing actuator, or transmission issues affecting performance. A proper diagnostic scan with manufacturer-level tools is essential to identify the exact cause.
How often should I service my differential on a 6.7 Cummins?
You should check your differential fluid level annually and change the differential fluid every 30,000-50,000 miles, with more frequent service if you tow heavy loads regularly. These differentials handle approximately 1,000 ft-lbs of torque, so proper gear oil maintenance prevents premature internal wear and costly repairs.
What are the signs of a bad Cummins turbo?
Signs of a bad Cummins turbo include a check engine light, noticeable power loss during acceleration, black or gray exhaust smoke, unusual whistling or whining noises, and rough idle. However, symptoms vary depending on where the turbocharger vanes bind up in their range of motion.
How often should I change transmission fluid in my 68RFE?
You should follow RAM’s recommended transmission fluid service intervals, but we recommend more frequent service if you tow regularly or drive in severe conditions. Neglecting transmission fluid maintenance is one of the leading causes of 68RFE transmission failures, especially given the high torque output of the 6.7 Cummins engine.
